Tutorial: http://osoyoo.com/?p=11933

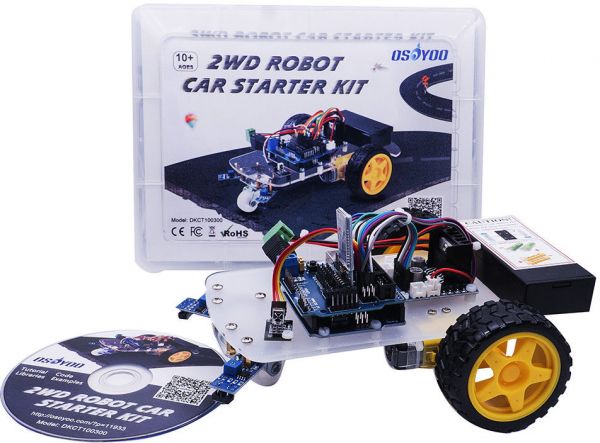

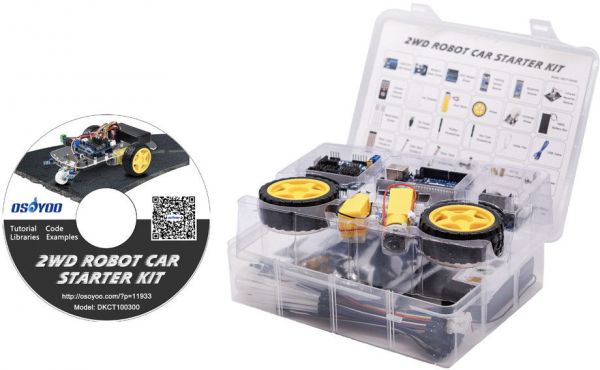

OSOYOO 2WD Robot Car: An educational kit for beginners (kids) to get hands-on experience about Arduino programming, electronics assembling and robotics knowledge. It is an integration solution for robotics learning and made for Arduino education.

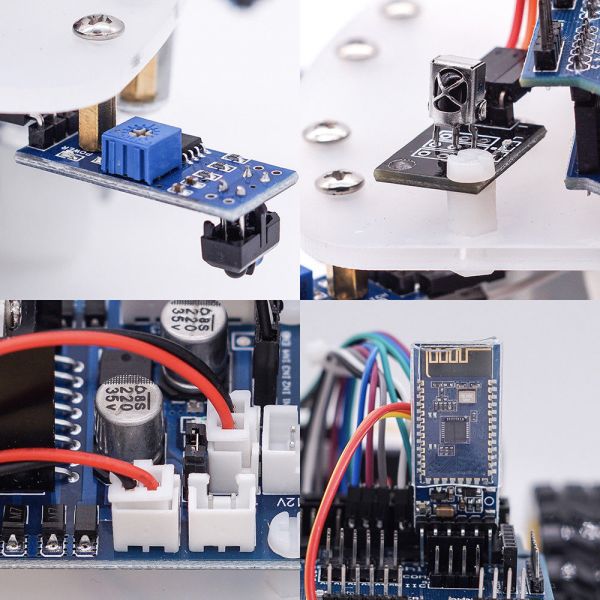

Multi-functional Car: This kit contains module parts including Tracking module, Infrared Remote Control, Bluetooth module. With these modules, the robot car can work in multiple modes such as auto-go, infrared control, line tracking, bluetooth control.
Easy to Assemble: It's a very simple kit, convenient to assemble the car and reduce the chances for errors. OSOYOO Model-X Motor Driver Module is an improved module which has newly designed wiring sockets which can greatly simplify the assembly procedure and wire connection stability.
Refined Tutorial: The kit comes with a step-by-step tutorial which evolves from a simple car with basic movements to a multi-functional robotic car controlled by mobile APP.
Tips: OSOYOO 2WD Robot Car Kit needs to be assembled, free to contact us if you required.
Multiple modes and functions that you will enjoy:
Auto-go robot car
Infrared remote control

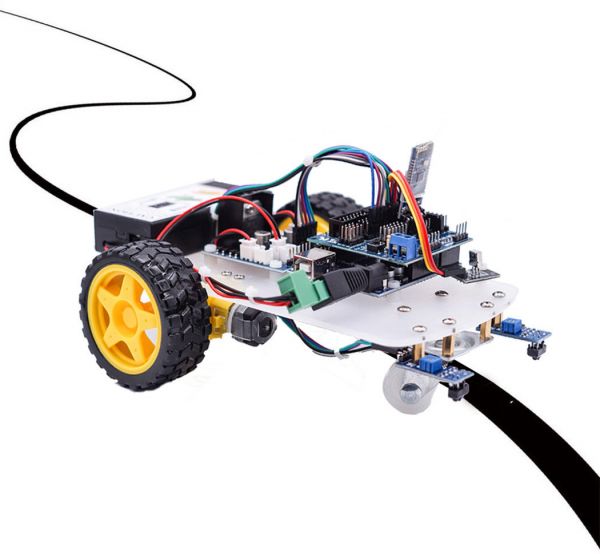

Line tracking

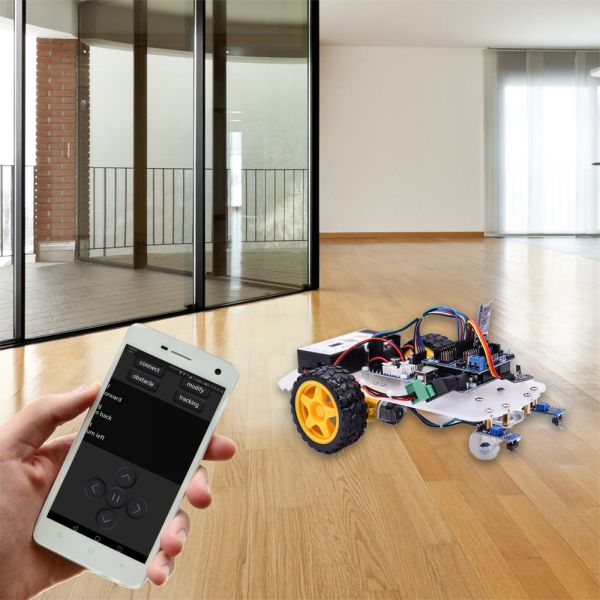

Bluetooth control

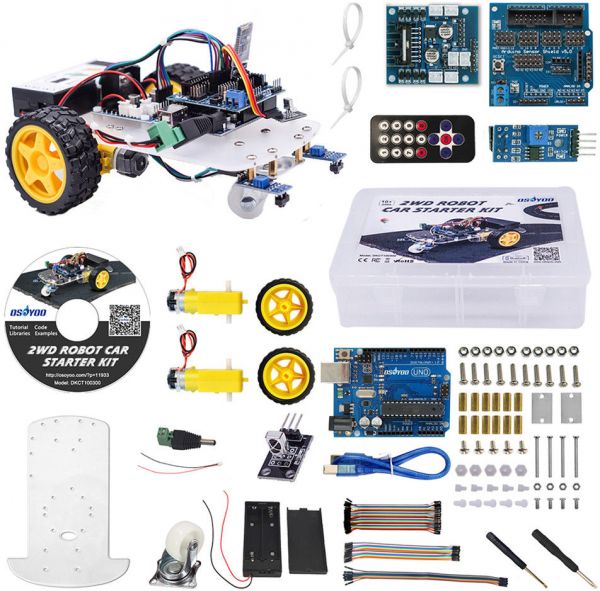

Packing list:
1x UNO R3 board with USB cable
1x OSOYOO Model X Motor Driver Module
1x Sensor Shield V5.0 for Arduino UNO
2x Tracking sensor module
1x Bluetooth Module
1x IR Receiver
1x IR Remote controller
1x Car Chassis
2x Gear Motor with wires
2x Wheel
1x Universal Wheel
1x Box for 18650 3.7V battery
2x Metal Motor Holder
1x DC power connector with wires
1x Phillips Screwdriver
1x Slot Type Screwdriver
1x 40pin 10cm Female to Female Cable
1x 10pin 30cm Female to Female Cable
1x 20pin 15cm Male to Female Cable
20x Cable Tie
16x M3*5 Screw
8x M3*12 Copper Pillar
6x M3*10 Screw
6x M3*10 Nut
15x M3 Plastic Screw
15x M3 Plastic Nut
15x M3 Plastic Pillar
