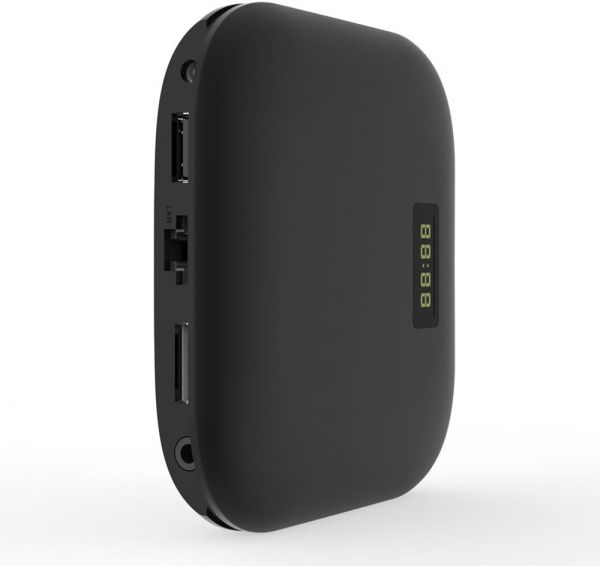

TAP 1 Android 6.0 TV Box, 2GB/16GB, Amlogic S905X Quad Core, 2.4GHz WiFi, Set Top Box, Bluetooth 4.0

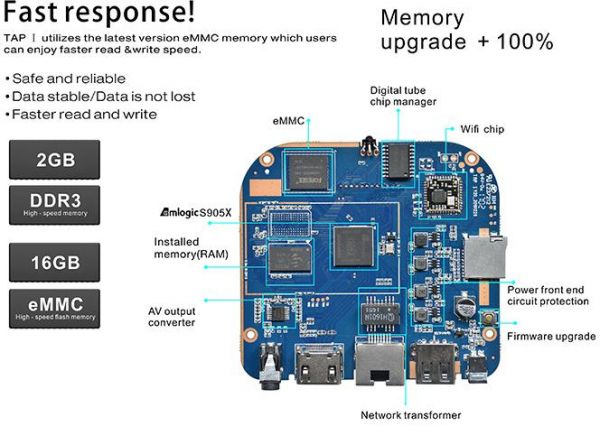

Hardware Specifications
- Chipset: Amlogic S905X Quad Core ARM Cortex-A53 CPU up to 2GHz(DVFS)
- GPU: Penta Core ARM Mali-450 GPU up to 750MHz+(DVFS)
- FLASH: EMMC 16GB
- SDRAM: 2GB DDR3
- Ethernet: 100Mbps LAN
- WIFI: IEEE 802.11b/g/n，2.4G
Technical Details:
- OS: Android 6.0
- Max Resolution: 4K*2K
- Bluetooth: BT 4.0
- Expand Memory: Micro SD Card (Max support 32GB Not Included)
- DC-in: 1*DC in Port
- USB2.0: 1* Standard USB Port
- HD: 1*HD Type Port
- RJ45: 1*RJ45 (network connection)
- AV: 1*AV Port
- TF Card Slot: 1* Micro SD card slot
- Power LED: 1* power LED
- Power management: Adapter DC5V 2A(100-240V,50/60Hz)
- Display: HD 2.0 for 4K 60Hz with HDCP 1.4/2.2
Video/Picture Decodin:
- VP9 Profile-2 up to 4Kx2K 60fps
- H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps
- H.264 AVC HP L5.1 up to 4Kx2K 30fps
- H.264 MVC up to 1080P 60fps
- MPEG-4 ASP L5 up to 1080P 60fps
- WMV/VC-1 SP/MP/AP up to 1080P 60fps
- AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P 60fps
- MPEG-2 MP/HL up to 1080P 60fps(ISO-13818)
- MPEG-1 MP/HL up to 1080P 60fps(ISO-11172)
- RealVideo 8/9/10 up to 080P 60fps
- WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918)
- Supports JPEG thumbnail,scaling,rotation and transition effects
- Supports*.mkv,*.wmv,*.mpeg,*.dat,*.avi,*.iso,*mp4,*.rm and*.jpg file formats
Video Post-Processing Engine
- Supports HDR10 and HLG HDR processing
- Motion adaptive 3D noise reduction filter
- Advanced motion adaptive edge enhancing de-interlacing engine
- 3:2 pull-down support
- Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing
- Programmable color management filter(to enhance blue,green,red,face and other colors)
- Dynamic Non-Linear Luma filter
- Deblocking filters
Programmable color matrix pipeline
- video mixer: 2 video planes and 2 graphics planes per video output
Video Output
- Built-in HD 2.0 transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,4Kx2K@60 max resolution output
- CVBS 480i/576i standard definition output
- Supports and standard SD/HD/FHD video output formats: 480i/p,576i/p,720p,1080i/p and 4Kx2K
- Audio Decoder and Input/Output
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
- 12S audio interface supporting 2-channel input and 8-channel(7.1) output
- Built-in serial digital audio SPDIF/IEC958 output and PCM input/output
- Built-in stereo audio DAC
- Stereo digital microphone PDM input
- Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Package Included:
- 1*Android TV Box
- 1*Remote controller (Battery is not included)
- 1*Charger
- 1*HDMI Cable
- 1*User Manual
