    Features:

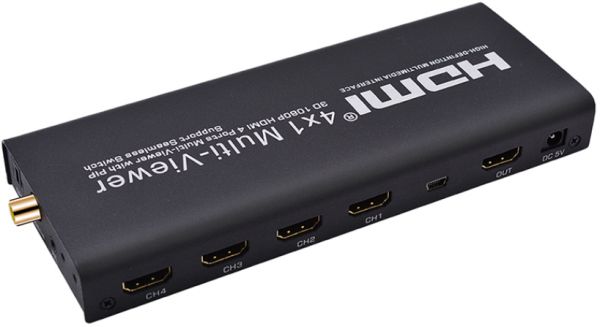

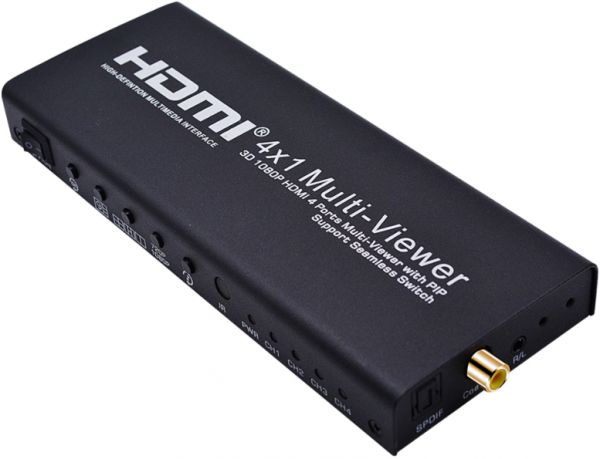

    This HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.
    It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously.
    The control methods of the switch is flexible, it can be switched via button and IR control.
    It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

    Features:
    ● Compliant with HDMI 1.3a,HDCP 1.2.
    ● Supports up to 1080p High Definition resolution.
    ● Supports 720/1080p output resolution.

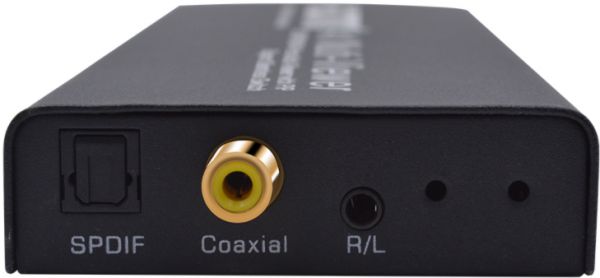

    ● Supports audio switch.
    ● Supports fast switching.
    ● Supports Equalizer TMDS Output: 25MHz 225MHz TMDS clock.
    ● Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
    ● Inputs can be switched with the IR remote controller, also can be controlled by built-in button.
    ● Extend the transmission distance and improve transmission signal.
    ● Compatible with DVI through a HDMI to DVI adapter.
    ● Supports hot plug-and-play.

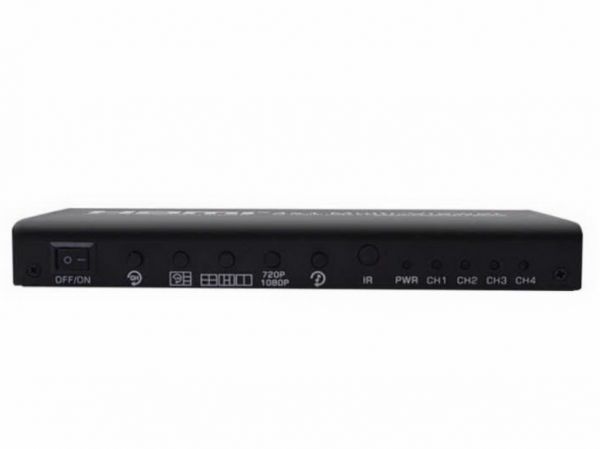

    ● LED indicate signal and power mode.
    ● Installs in minutes.

    Specifications:
    Maximum Single Link Range.........................1080P/60Hz
    HDMI input resolution.....................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
    HDMI output resolution......................720p/1080p/60Hz
    Supports video color format.................24bit/deep color 30bit, 36bit
    Vertical Frequency Range...................720/1080p@60Hz
    Max bandwidth..................................................225MHz
    Max bandrate.....................................................6.7Gbps
    1080P Input cable distance................15m AWG26 HDMI standard cable
    1080P Output cable distance.............20m AWG26 HDMI standard cable
    Max working current................................1.3A Operating
    Dimension (L x W x H)..............................180x72x21mm
    Weight......................................................................580g

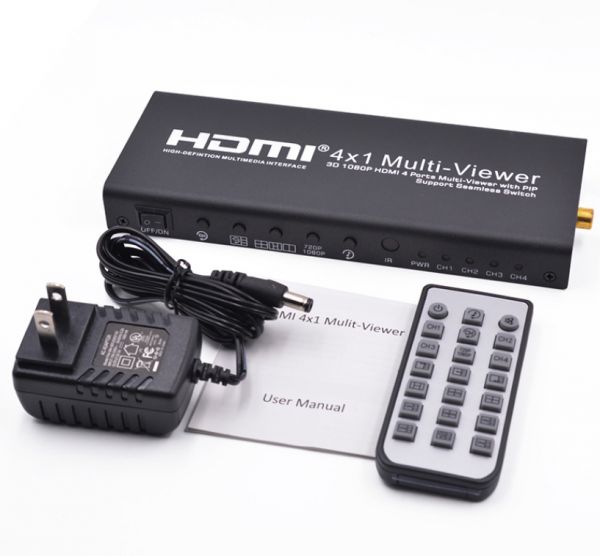

    Package Contents:
    HDMI 4x1 Multi-Viewer.........................................1pcs
    5V/2A DC power adaptor........................................1pcs
    Remote Control.........................................................1pcs
    Operation Manual.....................................................1pcs


    •
