DESCRIPTION
SPECIFICATION:
LCD PANEL : TFT LCD 7.0 INCH 1152000 PIXELS
RESOLUTION: 800 X 480
RESOLUTION UP TO: 1920 X 1440
BRIGHTNESS: 400CD/M2
CONTRAST RATIO: 500:1
VIEWING ANGLE: 70O/70O(L/R),50O/60O(U/D)
VIDEO SIGNAL INPUT RANGE: 0.7~1.4VP-P/75Ω
SUPPORTED INPUT FREQUENCY:
H: 30~60KHZ
V: 50~75HZ
HDMI: SUPPORTED FORMATS: 480I,480P,576I,576P,720P,1080/50I/60I/50P/60P;
SPEAKER OUTPUT CONSUMPTION: ≥1W/8Ω
VIDEO COLOR SYSTEM: PAL-4.43; NTSC-3.58
BACKLIGHT: LED
SIGNAL INPUT CHANNEL: HDMI,VGA,VIDEO1,VIDEO2,AUDIO
INPUT POWER VOLTAGE RANGE: DC6V-24V
POWER CONSUMPTION: ≤8W
STANDBY CURRENT: ≤50 MA
WORKING TEMPERATURE: -20℃~55℃
STORAGE TEMPERATURE:-30~65℃
DIMENSIONS: 188.4MM X 131MM X 40MM
BATTERY PLATE: F970/F960/F570/F750
BATTERY QUANTITY: 1PC
PACKAGE INCLUDES:

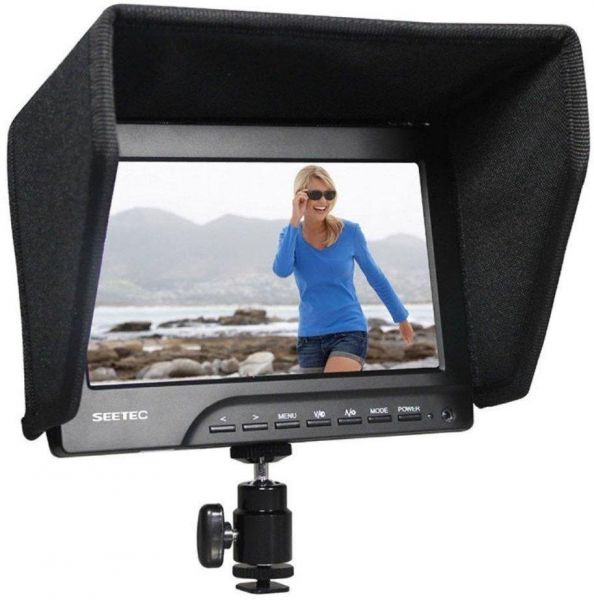

ST-689 H MONITOR-------1PC
SUN SHADE-------1PC
HDMI CABLE------1PC
ADAPTER------1PC
HOT SHOES HOLDER-----1PC
