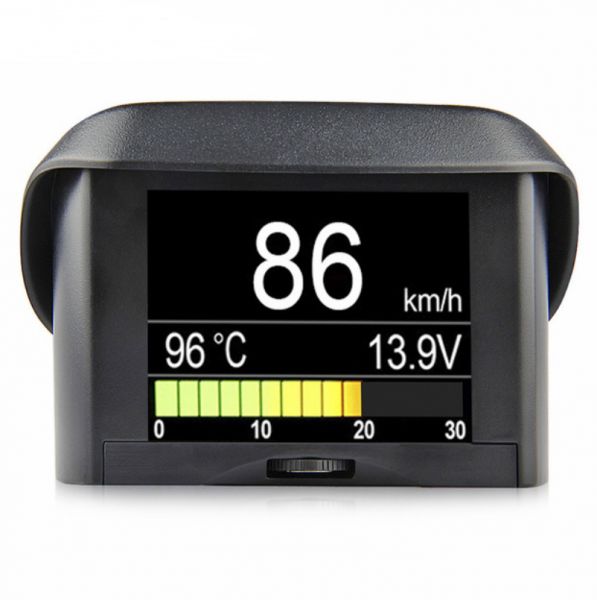

A202 car trip onboard computer is a small car instrument with powerful functions, which is especially suitable for vehicles without a tachometer, an engine temperature gauge and fuel consumption display functions. It takes data directly from car computer, and display in digital type and give alarms, it's a useful tool for road trip or home DIY-ers.

A202 can also display and monitor vehicle battery voltage, generator charging voltage, offering vehicle over speed alarm, high engine temperature alarm and monitoring and other functions. It even can read vehicle data streams, scan engine fault codes and offer fault code clearing functions.

Suitable models :

standard OBD-II protocol compliant petrol and diesel vehicles, especially for vehicles without a temperature gauge, tachometer and fuel consumption meter.

Display:  2.4 inch

Resolution: 220*180

Function: Display Speed, water temperature, instantaneous fuel consumption, hour fuel consumption, brake performance testing, vehicle acceleration test, data flow function display, display color configuration, fault code scanning for engine, fault code clearance and other functions

A202 Alarm Warning Function:

Water Temperature Warning,

Over Speed Warning,

Shift Warning,

Over Voltage Warning

A202 Feature List

1. Shift reminder function

3. The average fuel consumption and hourly fuel consumption function .

4. fault code diagnostics, clear fault code, turn off engine light

5. The blue OLED display, automatically adjustable screen brightness.

6. Set engine displacement , fuel consumption more accurate.

7. supports brake performance test function and acceleration test

8. OBD Plug-and-Play, easy to install.



A202 Specifications:

Operating voltage: 10-18V DC

Operating current: <80mA

Sleep current: <15mA

Operating temperature: -20~8 C

Product volume: 70mm*60mm*90mm

Features of product hardware:

32-bit ARM CORTEX-M3 CPU, with 72MHz maximum operating frequency, in support of multiple high speed automotive communication protocols
