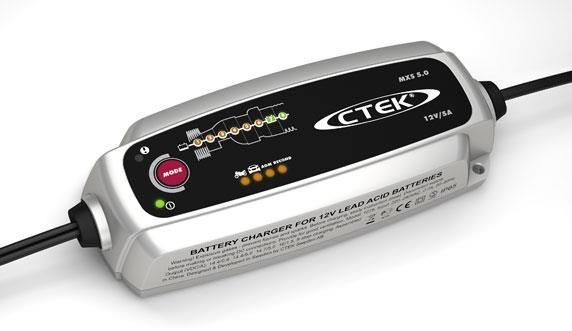

MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on lead-acid batteries from 1.2Ah up to 110Ah. The MXS 5.0 solves a broad range of battery problems and is the ideal charger for the user with high demands. Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, patented automatic desulphation step and a special reconditioning step that will revive and restore deeply discharged and stratified batteries. AGM option is perfect for maximising performance and life of most Stop - Start batteries. The built in temperature compensation ensures ideal charging performance even in the most extreme conditions. Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long - term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.

Product Features :

Volt 12V
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
Min battery voltage 2.0V
Charging current 5A max
Current, mains 0.6A rms (at full charging current)
Back current drain <1Ah/month
Ripple Less than 4% voltage
Ambient temperature -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type 8 step, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 1.2–110Ah up to 160Ah for maintenance
Dimensions 168 x 65 x 38mm (L x W x H)
Insulation class IP65
Weight 0.6kg
Temperature Compensation Built in charge voltage compensation according to ambient temperature
