Description:

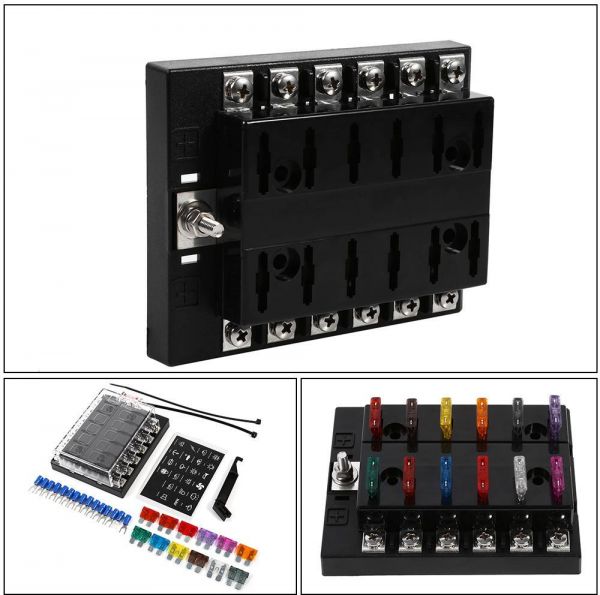

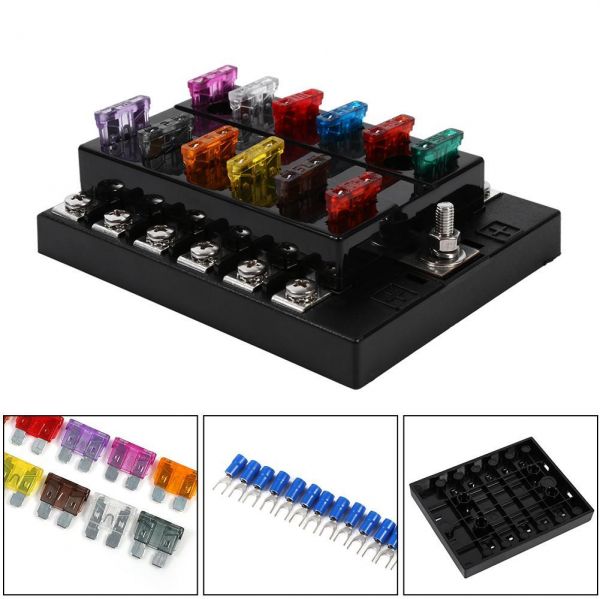

This 12 way blade fuse box is an essential part for car circuit modification, which is widely used in modified car, eco-car, airplane, subway, bus, ship, tanker and so on. Moreover, it is suitable for middle size blade fuse (ATC,ATO), and it can be installed in circuit. With 1 common bus supplies power for 12 way fuses, the blade fuse box is very effective and safe, so that you can use it rest assured.

Features:

1. 1 common bus supplies power for 12 way fuses, effective and safe.

2. This box can be fixed with 4 pre-moulded holes, easy to install.

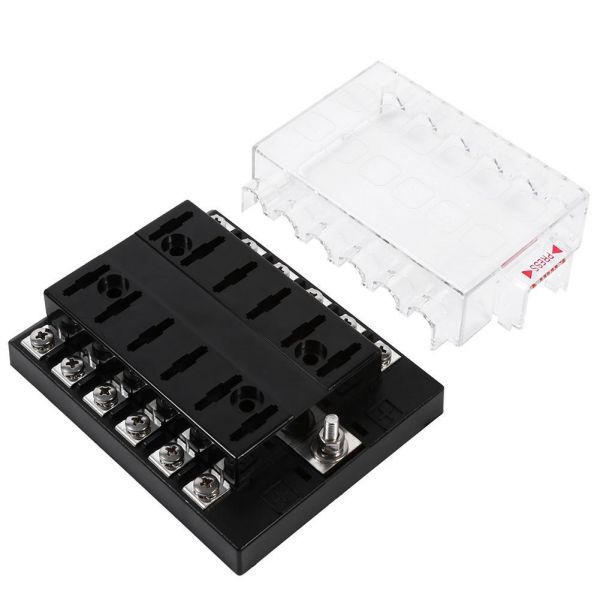

3. With PC shell and clear cover for additional protection, sturdy construction, durale in using.

4. Come with a piece of symbol sticker (22 pre-printed symbols) for your convenience.

5. Suitable for middle size blade fuse (ATC,ATO), can be installed in circuit.

6. Essential part for car circuit modification, convenient for examination and repair, easy to troubleshoot in outdoor, widely used in airplane, subway, bus, ship, tanker, modified car, eco-car, etc.

Specifications:

Material: PC Shell, Clear PC Cover, Tinned Brass Terminal

Terminal Type: Y Type

Max. Voltage: DC 32V

Current: 25Amp/Way(whole affordable current up to 150Amp)

12pcs Fush Blade Current/Fush Blade Pieces:

2A/1,3A/1,5A/1,7.5A/2,10A/1,15A/1, 20A/1,25A/1, 30A/2,35A/1

Connective Terminal: 6.3mm/0.25'' Blade

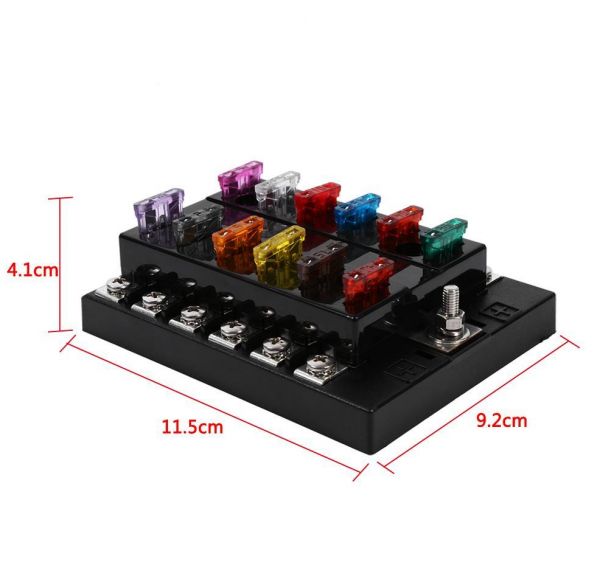

Size: 11.5 x 9.2 x 4.1cm/4.5'' x 3.6'' x 1.6''

Package Weight: 244g

Applications: Widely used in airplane, subway, bus, ship, tanker, modified car, eco-car, etc.

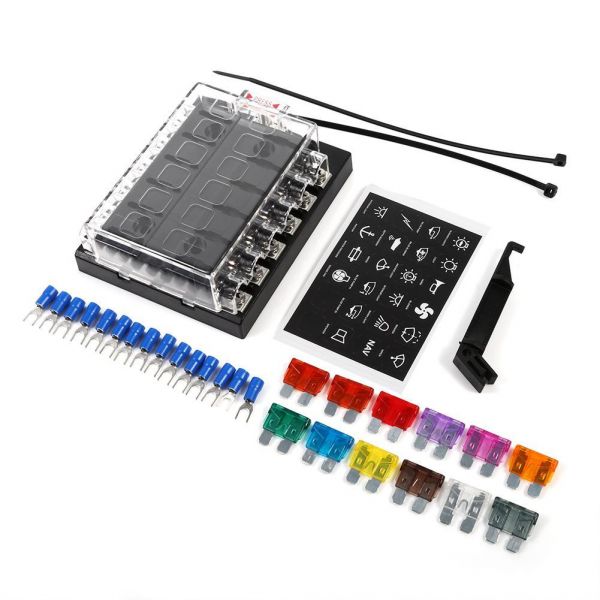

Package Included:

1 x 12 Way Blade Fuse Box Holder

1 x Professional Sticker

1 x Blade Fuse Puller

2 x Ribbons

15 x Cable Terminal Connectors

12 x Fuse Blades:

1x 2 Amp,

1x 3 Amp,

1x 5 Amp,

2x 7.5 Amp,

1x 10 Amp,

1x 15 Amp,

1x 20 Amp,

1 x 25 Amp,

2x 30 Amp,

1x 35 Amp
