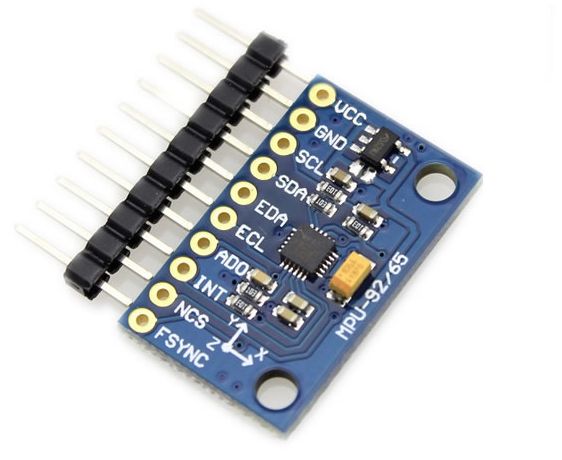

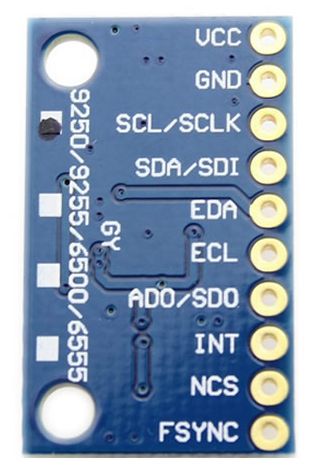

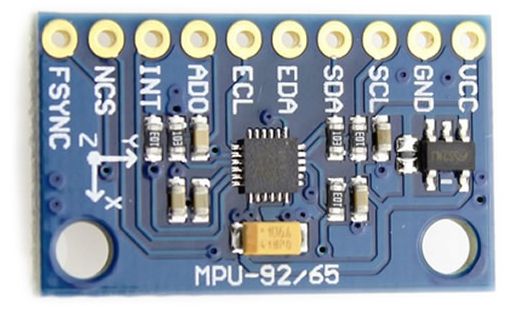

This is the MPU-9250 is a 9-axis MotionTracking device that combines a
3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a
Digital motion processor. Based on the IC MPU-9250, which is the world’s
smallest 9-axis MotionTracking device and incorporates the latest
InvenSense design innovations, this module features three 16-bit ADC for
digitizing the gyroscope outputs and three 16-bit ADCs for digitizing
the accelerometer outputs and three 16-bit ADCs for digitizing the
magnetometer outputs. low power, and high performance make it suitable
for consumer electronics equipment including smartphones, tablets and
wearable sensors
Features
- Three 16-bit analog-to-digital converters ADCs for digitizing the gyroscope outputs
- Three 16-bit ADCs for digitizing the accelerometer outputs
- Three 16-bit ADCs for digitizing the magnetometer outputs
- Gyroscope full-scale range of -250, -500, -1000, and -2000°/sec dps
- Accelerometer full-scale range of -2g, -4g, -8g, and -16g
- Magnetometer full-scale range of -4800μT
- I2C and SPI serial interfaces
- Internal Digital Motion Processing engine supports advanced MotionProcessing and low power functions such as gesture recognition using programmable interrupts
- Power supply: 3-5v
Applications
- TouchAnywhere TM technology for “no touch” UI Application Control/Navigation
- MotionCommand TM technology for Gesture Short-cuts
- Motion-enabled game and application framework
- Location based services, points of interest, and dead reckoning
- Handset and portable gaming
- Motion-based game controllers
- 3D remote controls for Internet connected DTVs and set top boxes, 3D mice
- Wearable sensors for health, fitness and sports
