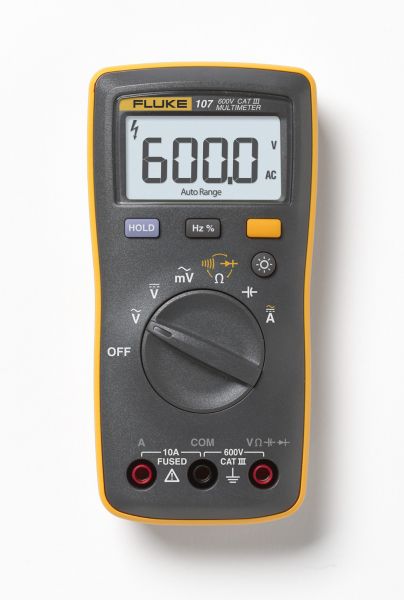

Features: Voltage, resistance, continuity, capacitance Input terminal for ac and dc current measurements to 10 A and current Backlit display Data hold Diode test, plus frequency and duty cycle measurements Specification: Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] [Number of Least Significant Digits]) Accuracy Specifications AC Volts (40 Hz to 500Hz)1RangeResolutionAccuracy 6.000 V 60.00 V 600.0 V0.001 V 0.01 V 0.1 V1.0 % 3 DC Volts6.000 V 60.00 V 600.0 V0.001 V 0.01 V 0.1 V0.5 % 3 AC Millivolts600.0 mV0.1 mV3.0 % 3 Diode Test22.000 V0.001 V10 % Resistance (Ohms)400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ0.5 % 3 0.5 % 2 0.5 % 2 0.5 % 2 0.5 % 2 1.5% 3 Capacitance350.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF2 % 5 2 % 5 5 % 5 5 % 5 5 % 5 5 % 5 Frequency4 Hz (10 Hz – 100 kHz)50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz0.1 % 3 Duty Cycle41 % to 99 %0.1 %1 % typical 5 AC Current (40 Hz to 200 Hz)4.000 A 10.00 A0.001 A 0.01 A1.5 % 3 DC Current4.000 A 10.00 A0.001 A 0.01 A1.5 % 3 All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Typically, open circuit test voltage is 2.0 V and short circuit current is 10 MΩ 60 dB at dc, 50 Hz or 60 Hz− AC Millivolts600 mV>1M, 80 dB at 50 Hz or 60 Hz− DC Volts600 V 1>10 MΩ 100 dB at dc, 50 Hz or 60 Hz>60 dB at 50 Hz or 60 Hz 6 x 105 V Hz Max For mV (AC), input impedance is approximately 1 MΩ. General Specifications Maximum Voltage Between any Terminal and Earth Ground600 V Display (LCD)6000 counts, updates 3/sec Battery Type2 AAA, NEDA 24A, IEC LR03 Battery Life200 hours minimum Temperature Operating0 °C to 40 °C Storage-30 °C to 60 °C Relative Humidity Operating HumidityNon-condensing when 28 °C) Fuse Protection for Current Inputs11A, 1000V Fast Fuse, Fluke specified part only Size (HxWxL)142 mm x 69 mm x 28mm Weight200 g IP RatingIEC 60529: IP 40 SafetyIEC 61010-1: 600 V CAT III, Pollution Degree 2 Electromagnetic EnvironmentIEC 61326-1: Portable Electromagnetic CompatibilityApplies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
