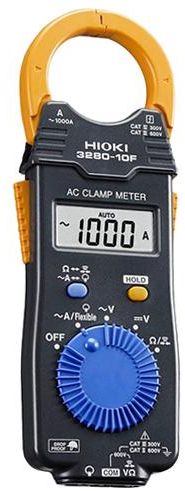

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25Degree C to 65Degree C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
Product Features :- Brand: Hioki
- Model Number: 3280-10F
- Type: Clamp Meter
- Measurement: Mean value
- Core Jaw Diameter: 33 mm
- CAT Rating: V: CAT IV 300V,CAT III 600V
- Max. Rated Voltage to Earth: 600 Vrms
- Bandwidth: 50/60Hz
- AC Current: 41.99 to 1000A
- DC Voltage: 419.9mV to 600V
- AC Voltage: 4.199V to 600V
- Resistance: 419.9 Ohm to 41.99M Ohm
- Continuity Check: Yes
- Auto Power Save: Yes
- Data Hold: Yes
- Cable length: 800 mm
- Environmental Protection: IP40 dustproof and waterproof
- Display: LCD, max. 4199 dgt., Display refresh rate 400 ms
- Battery Use: 1 x Coin type lithium battery (continues use works for 120hrs)
- Dimension: 57 x 175 x 16 mm
- Mass: 100gm(including battery and holster)
- Set Includes: 1 x Test Lead L9208, 1 x Coin type lithium battery (CR2032) and Instruction manual
- Details: Measure the fundamental waveform component using the average rectified method
- Expanded -25Degree C to 65Degree C operating temperature range
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop proof design withstands drop from a height of 1 meter
- CATIV 300V (Current) CATIII 600V (Current) CATIII 300V (Voltage) CATII 600V (Voltage)
- Optional flexible current sensor, the 3280-10F can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires
- Delivers all the functionality of a clamp meter and card tester in the form factor of the latter
- Single instrument delivers voltage measurement, continuity check, and resistance measurement functionality
