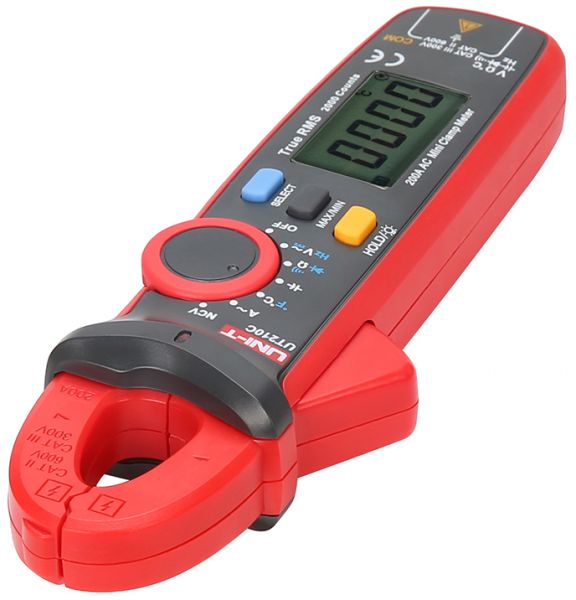

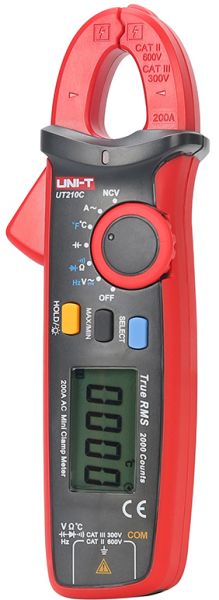

UT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument.

Specifications

Range

Best Accuracy

Model

UT210C

AC Current (A)

20A/200A

±（1.8% 9)

AC Voltage (V)

2V/20V200V/600V

±(1.0％＋3）

DC Voltage (V)

200mV/2V/20V200V/600V

±(0.7% 3)

Resistance (Ω)

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0％ 2）

Capacitance (F)

20nF/200nF/2μF/20μF/200μF/2mF/20mF

±(4% 5)

Temperature（℃）

 -40～1000℃

±(1% 3)

Temperature（℉）

 -40～1832℉

±(1.5% 5)

Features

Display Count

2000

Auto Range

√

Jaw Capacity

17mm

True RMS

√

Diode

Around 3.0V

√

NCV

√

Data Hold

√

MAX/MIN

√

LCD Backlight

√

Auto Power Off

Around 15 Minutes

√

Continuity Buzzer

√

Low Battery Indication

≤2.5V

√

Input Protection

√

Input Impedance for DCV

≥10MΩ

√
