    Features:
    Compliant to HDMI 2.0 and HDMI 1.x specification.
    Serial data rate up to 6.0 Gbps, capable of supporting ultra-high resolution 4K/2K @ 60 Hz format.
    Support HDCP 2.2
    Supports 3D transmission.
    When input resolution is 4K/60Hz,RGB 4:4:4,both input and output transmission distance are up to 15 meters using HDMI 2.0 AWG24 cable.
    When input resolution is 4K/30Hz,RGB 4:4:4 or 4K/60Hz RGB 4:2:0,both input and output transmission distance are up to 20 meters using HDMI 2.0 AWG24 cable.
    When input resolution is 1080P/60Hz,both input and output transmission distance are up to 30 meters using HDMI 2.0 AWG24 cable.
    Audio and video lossless transmission without any delay.
    Simple installation.


    Specification:
    HDMI Input/Output Resolution: Up to 4K/60fs
    Support HDMI Video Color Format: 24bit/Deep color 30bit/36bit
    HDMI Audio Channel Quantity: 32 Channels
    HDMI Maximum Bandwidth: 300MHz
    HDMI Maximum Transmission Rate: 18Gbps
    Max Working Current: 300mA
    Power Adapter Format: AC 100V-240V 50/60HZ,DC 5V/1A
    Operating Temperature Range: -10~+55 degree
    Storage Temperature Range: -20~+60 degree
    Operating Humidity Range: 10~90%RH(No Condensation)
    Storage Humidity Range: 5~95%RH(No Condensation)
    ESD Protection Human Body Model: ±8kV(Air-gap Discharge)±4kV (Contact Discharge)

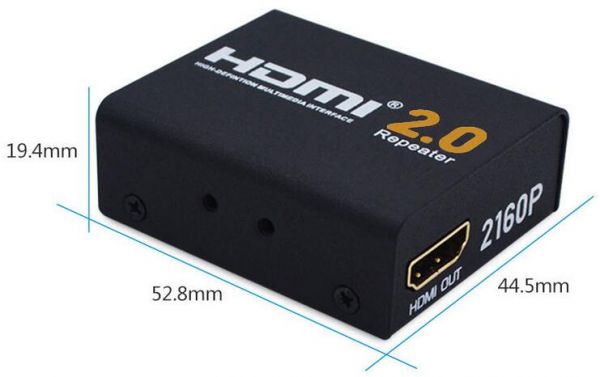

    Case Dimension: 52.8×44.5×19.4mm
    Package size: 11.5x7.5x2.5cm



    Package Contents:

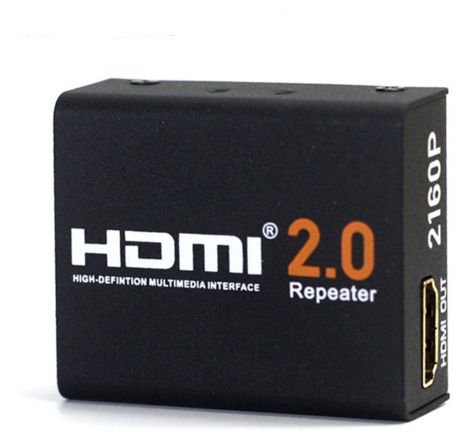

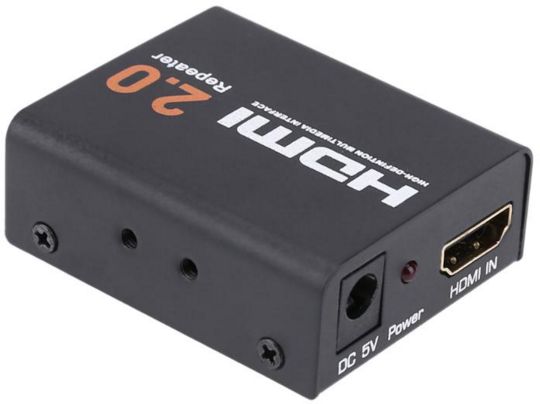

    1 x HDMI Repeater
    1 x User Manual

    •
