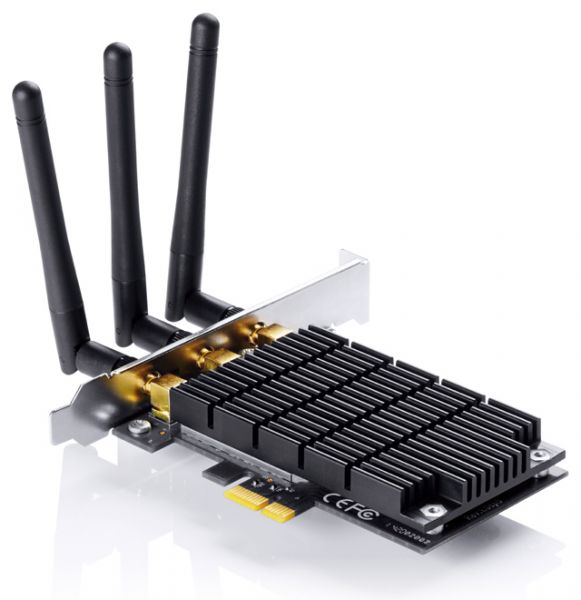

AC1750 Wireless Dual Band PCI Express Adapter
Archer T8E
Ultra-fast 1750 (1300 450)Mbps wireless speed with 802.11ac
Dual Band connections for lag-free HD video streaming and gaming
3T3R MIMO technology provides robust high-bandwidth wireless transmission
802.11ac - The Next Generation of Wi-Fi
TP-LINK’s Archer T8E comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds. With 1300Mbps wireless speeds over the crystal clear 5GHz band or 450Mbps over the 2.4GHz band, the Archer T8E is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
AC1750 Wireless Speed
The 5GHz 1300Mbps is perfect for HD video streaming and lag-free online gaming, while using 2.4GHz 450Mbps Wi-Fi for normal use such as web surfing.
The Best of Both Bands
TP-LINK’s Archer T8E is an AC1750 Wireless Dual Band PCI Express Adapter giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections to upgrade their PC’s wireless capabilities to operate with new 5GHz band wireless networks, while ensuring that they can still access legacy 2.4GHz band wireless networks.
WPA/WPA2 Encryptions – Advanced Security
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
HARDWARE FEATURES
Interface PCI Express
Dimensions (W X D X H) 4.5×4.8×0.8 in. (115.2×120.8×21.5mm)
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 1300Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz：
11a 6Mbps: -85dBm
11a 54Mbps: -68dBm
11ac HT20: -59dBm
11ac HT40: -54dBm
11ac HT80: -51dBm
2.4GHz:
11b 11Mbps: -80dBm
11g 54Mbps: -68dBm
11n HT20: -64dBm
11n HT40: -61dBm
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter Archer T8E
Resource CD
Quick Installation Guide
System Requirements Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
