DESCRIPTION

PRODUCT DESCRIPTION:

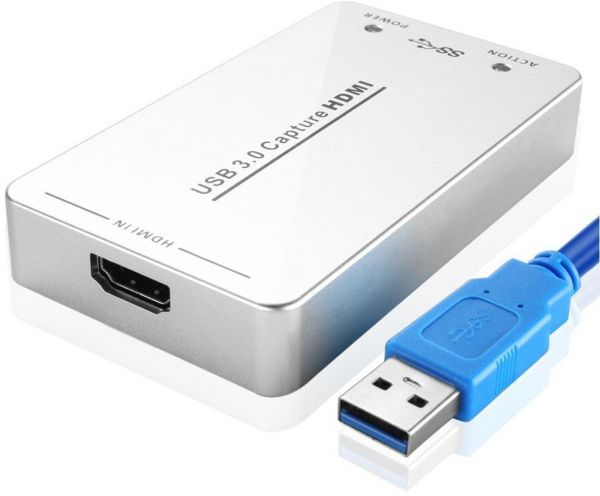

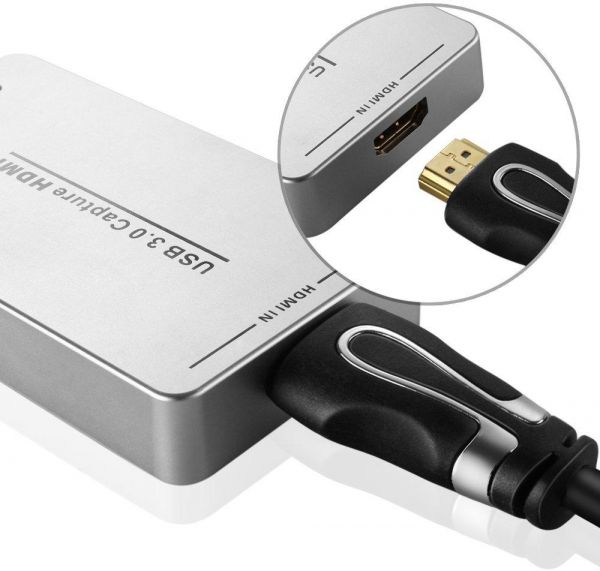

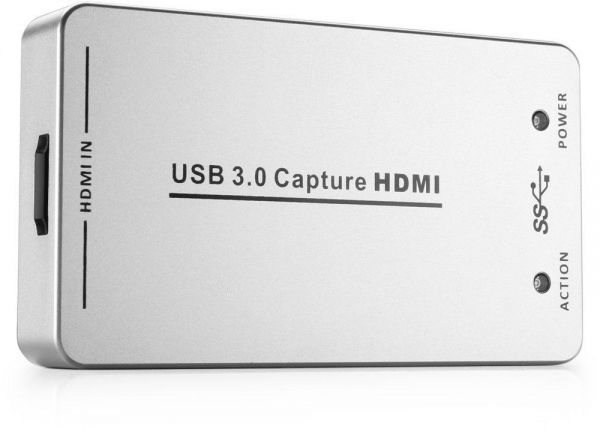

THE COOPIC UH60 IS A SMALL HDMI CAPTURE DEVICE THAT CONNECTS TO USB 3.0 PORT TO DELIVER UNPARALLELED VIDEO QUALITY AT AN ASTONISHING 1080P! THIS PORTABLE CAPTURE CARD (DONGLE) CAN BE CARRIED IN YOUR POCKET.

RECORD OR STREAM AN HDMI SIGNAL VIA USB 3.0 WITH RESOLUTIONS OF UP TO 1920 X 1200 AT 60FPS. IF YOU NEED TO STREAM OR RECORD AT A CERTAIN RESOLUTION, THE DEVICE WILL INTERNALLY UP OR DOWN-COVERT THE INPUT SIGNAL. BECAUSE THE DEVICE USES THE EXISTING DRIVERS ON YOUR COMPUTER, THE CAPTURE DEVICE WILL WORK WITH ANY SOFTWARE THAT SUPPORTS THOSE DRIVERS (EVEN POSSIBLE TO USE WITH SKYPE, GOOGLE HANGOUTS, WEBEX AND MORE).

SPECIFICATION:

• HDMI VIDEO FORMATS: 1080P/60HZ 8-BIT, (RGB, YUV)

• HDMI AUDIO INPUT: 1 LPCM AUDIO SIGNAL

• OUTPUT FORMATS: RESOLUTIONS: 640*480 / 720*480 / 720*576 / 768*576 / 800*600 / 1024*768 / 1280*720 / 1280*800 / 1280*960 / 1280*1024 / 1368*768 / 1440*900 / 1600*1200 / 1680*1050 / 1920*1080 / 1920*1200 / 640*360 / 856*480 / 960*540 / 1024*576

• FRAME RATE: 25 / 29.97 / 30 / 50 / 59.94 / 60 FPS

• VIDEO SAMPLING RATE: HDMI: 165MHZ

• AUDIO AND VIDEO CAPTURE: STANDARDS UVC (USB VIDEO CLASS) AND UAC (USB AUDIO CLASS)

• OUTPUT COLOR SPACE: YUY2, RGB24

• HARDWARE COLOR SPACE CONVERSION

• HARDWARE UP/DOWN SCALING

• IMAGE ADJUSTMENT OF BRIGHTNESS, CONTRAST, HUE, SATURATION

• OS COMPATIBILITY: WINDOWS 7/8/8.1/10/2008/2008 R2/2012 (X86 & X64)

• LINUX (BASED ON V4L2 , SUPPORTS X86, X64 & ARM ARCHITECTURE)

• OS X (10.8 AND ABOVE)

• SOFTWARE COMPATIBILITY: WINDOWS MEDIA ENCODER (WINDOWS), ADOBE FLASH MEDIA LIVE ENCODER (WINDOWS, OS X), REAL PRODUCER PLUS (WINDOWS), VLC (WINDOWS, OS X, LINUX), QUICKTIME BROADCASTER (OS X), QUICKTIME PLAYER (OS X), WIRECAST (WINDOWS, OS X), ETC...

• DEVELOPMENT INTERFACE COMPATIBILITY: DIRECTSHOW (WINDOWS), DIRECTSOUND (WINDOWS), V4L2 (LINUX), ALSA (LINUX), OS X (QUICKTIME), ETC...

PACKAGE INCLUDE:

HDMI TO USB 3.0 VIDEO CAPTURE DONGLE—1PC

USB 3.0 CABLE 1PC

USER MANUAL 1PC
