描述:Features
- 1 HDMI input, 1 HDMI loop out, you can watch while recording
- High speed recording of full HD pictures using USB 3.0 channels
- No need to install drivers, plug and play
- Compatible with a variety of third-party acquisition software
- Low power design without additional power supply
- Acquisition quality: up to 1080p, 60 frames
- Size (length, width, height): 80x52x16 (mm)
-Line length: 55 mm
- Net Weight: 40g
Product parameters
-Support resolution
720×480 (60p), 720×576 (50p),
1280×720 (50p), 1280×720 (60p),
1920×1080 (50p), 1920×1080 (60i), 1920×1080 (24p), 1920×1080 (25p), 1920×1080 (30p), 1920×1080 (50p), 1920×1080 (60p)
Support operating system —— Windows 7, 8, 10, Mac OS X 10.9 or above, Linux
Hardware requirements:
Desktop——Intel Core i5-3400+NVIDIA GT630
Notebook——Intel Core i7-U 2.0GHz+NVIDIA GT735
Mac——i5 quad-core or above, video card compatible with DirectX 10, sound card, 4GB RAM
USB3.0 Power Supply—— Intel Chipset with Built-in USB 3.0 Controller (Renesas, Fresco, etc.)
Support third-party software:
OBS Studio (Windows, OS X);
Windows media Encoder(Windows);
Adobe Flash Media Live-Encoder (Windows, OS X);
Real Producer Plus(Windows);
VLC (Windows, OS X Linux);
Quick Time Broadcaster (OS X);
Quick Time player (OS X);
Wirecast (Windows, OS X);
Mix(Windows);
Potplayer(windows) and etc;

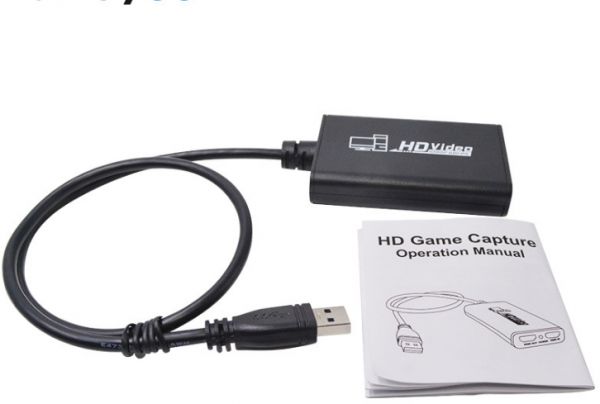

Package Contents
1xHD Capture Card
1xManual
