Frequency range

Uplink  890~915MHz

Downlink 935~960MHz

Gain ( dBi)

Uplink  Gp≥45

Downlink   Gp≥50

Output Power (Po)

≥10dBm

Flatness In Band

≤3dB

Guard Band Rejection

(BW-60dB)≤42MHz ,(BW-70dB)≤45MHz

I/O Impedance

50Ω/N connector

I/O Return loss

≤-3dB

Noise Figure

≤4dB

Intermodulation

Attenuation(Po=10dBm)

≤-40dBc

Transmission Delay

≤0.5μs

Ambient Temperature

-10 to 60

Power Supply

AC110 to 220V  45 to 55Hz

Reliability

To the GB6993-86 standard

Electromagnetic Compatibility

To the ETS300 694-4 standard

Function

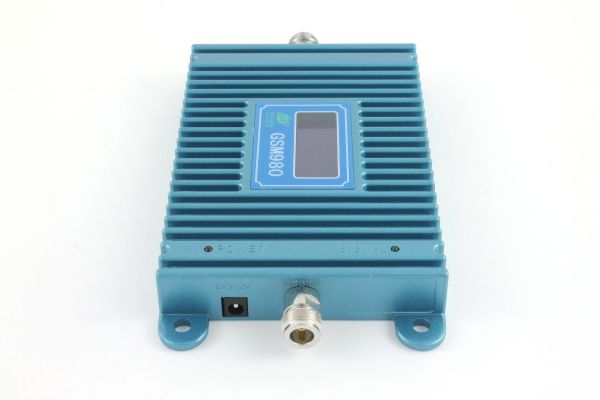

a) Power supply LED denote

b) Export power LED denote

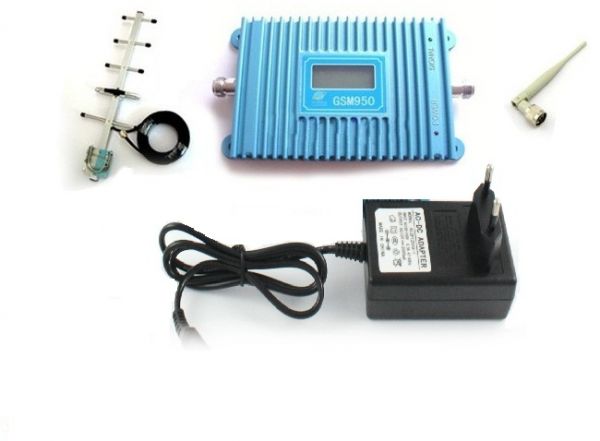

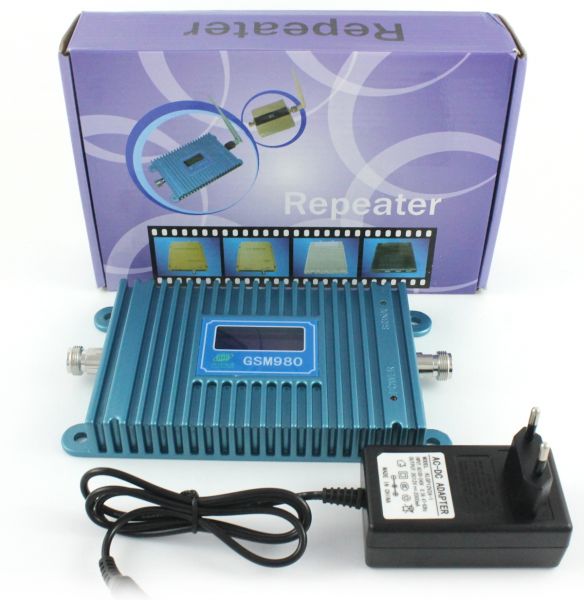

package:

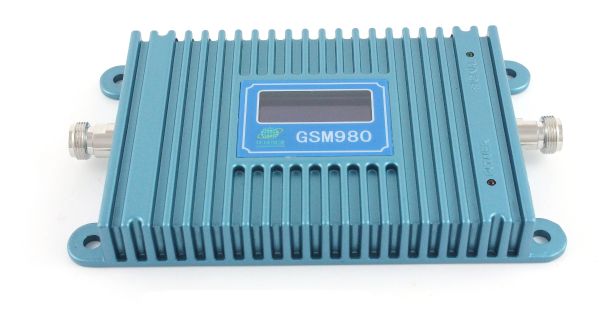

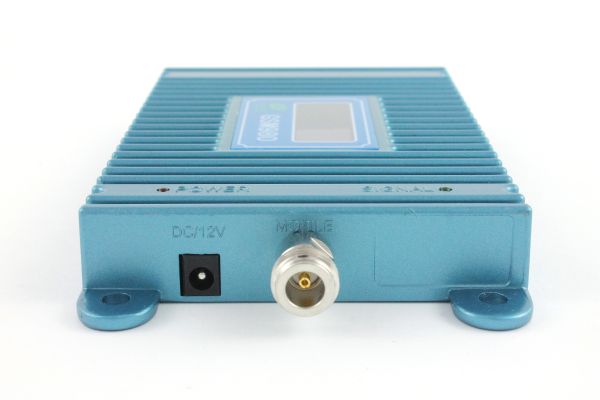

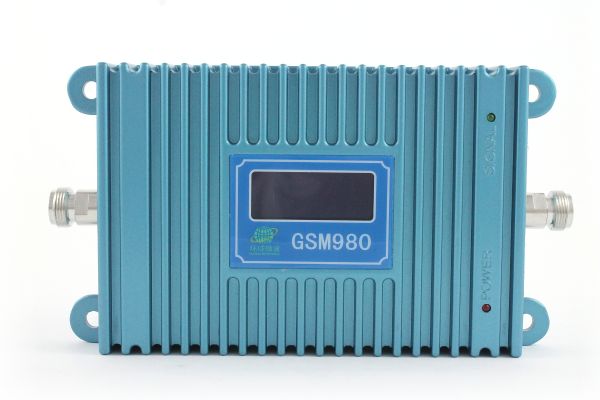

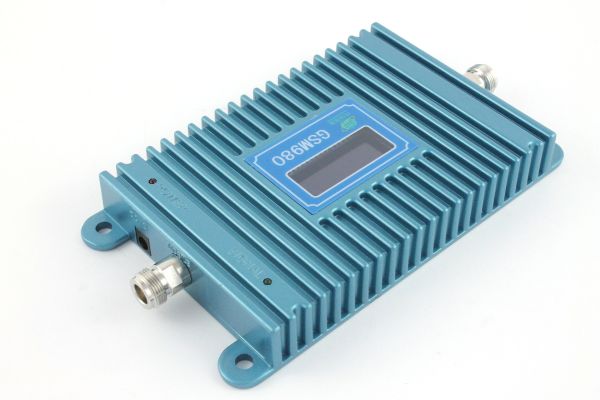

1x  GSM 980MHZ SIGNAL REPEATER

1X CHARGER

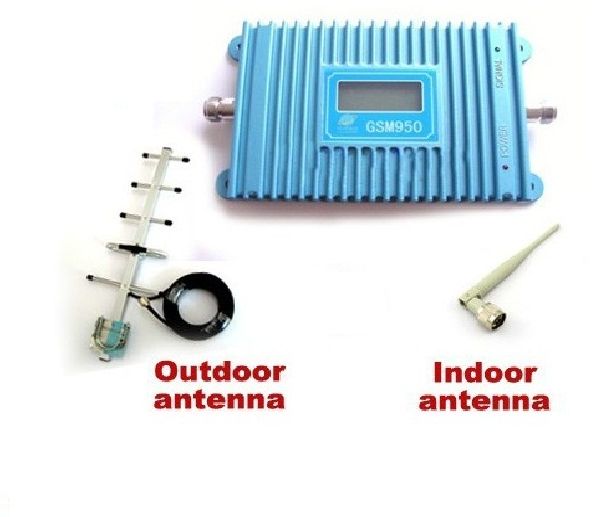

1X INDOOR ANTENNA

1X OUTDOOR ANTENNA

MANUAL BOOK NOT INCLUDING.
