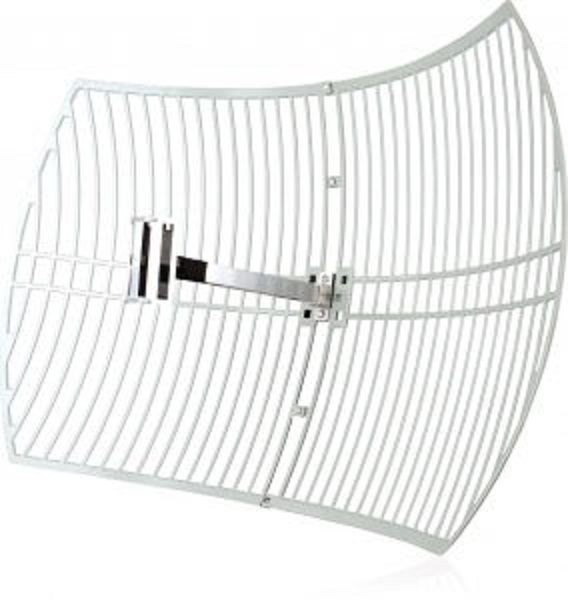

  • 描述：Grid parabolic antenna TL-ANT2424B is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance. This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance. It is used for outdoor and the range is up to 56 km.

    Specifications:

    ANTENNA

    Dimension
    1000mm x 600mm

    Weight
    3.5kg

    Frequency
    2.4GHz

    Gain
    24dBi

    VSWR(MAX.)
    1.5:1

    HPBW/H( °)
    10

    HPBW/V( °)
    14

    Polarization
    Linear; Vertical

    Type
    Directional
    Connector Type
    N Female(Jack)

    Extended Cable/Length
    30cm

    Mounting
    Pole Mount

    Application
    Outdoor

    Approximate Range at 1/11/54Mbps
    56km/31.5km/4.44km

    Operating Temp.
    -40℃~60℃(-40℉~140℉)
    Storage Temp.
    -40℃~60℃(-40℉~140℉)

    Optional Accessory
    TL-ANT24EC6N TL-ANT24EC12N
    TL-ANT24SP TL-ANT24PT

    Package Contents
    24dBi Grid Parabolic Antenna
    Installation mounting kits
    User Guide
    • Compliant with 802.11n/b/g (2.4GHz)
    • 24dBi signal gain
    • N Female connector

    •
