    Product Description:

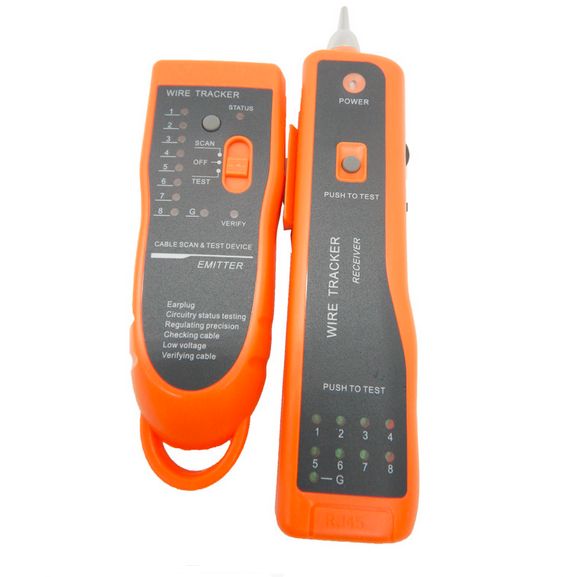

    . Cable Tester for UTP STP RJ45 RJ11;
    . Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;
    . TEL BNC test available(Adapter needed);
    . Remotely test cable up to 1000 ft in length ( remote kit included );
    . Protective power switch for low power consumption;
    . Protecive case provides more secure protection;
    . Judge continuity of the cables or wires;
    . Track the cables or wires, and diagnose the break point;
    . Receiver the tone signal on the cables or wires (telephone line);
    . Identify the state in the working telephone line (clear ring, busy);
    . Send a single solid tone or a dual alternating tone to the object cables or wires.

    Features:
    . Streamlined design and easy to carry
    . Comes with earphones usable in noisy situation
    . Flexible and versatile interface
    . Sensitive and adjustable volume control

    Specification:
    Working current:
    Emiter: 10mA Receiver: 30mA
    Signal transfe mode: Digital signal
    Signal output level: 8Vp-p
    Signal transfer distance: 3Km
    Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
    Power: by 2 x DC 9V Battery( not included)

    Package Contents:

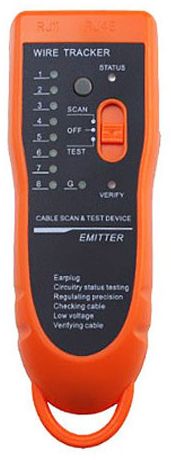

    1 x Cable Emitter

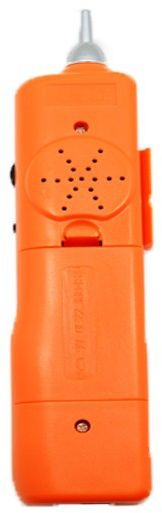

    1 x Cable Receiver
    1 x RJ11 Cable
    1 x RJ45 Cable
    1 x Earphone
    1 x Cable with Crocodile Clamp
    1 x User Manual

    •
