EAN：<2724266611562>
采购预算：<47>
竞争强度：<2>
评分： <5.0>
评论数：<1 review>
热门度：<热>
最后活跃度：<2018/01/05>
品牌：
品类：<2>
热卖：

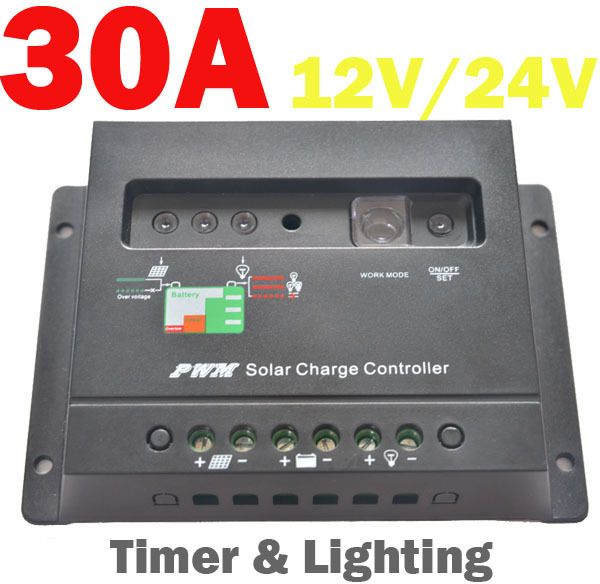

描述：- -PWM 30A Solar Charge Controller Panel Regulator 12V 24V - The Solar lighting Controller for solar system with automatic lighting control and time functions. - The Solar Controller is designed with a microcontroller for automatic lighting control functions. - Proven reliability - Precise lighting controller - PWM battery charging - Microcontroller digital accuracy - Fully automatic operation - 16 field adjustable lighting control options - Manual test capability - Detects day and night using the PV array - Suitable for all 12V /24V lamps - Suitable for Seal lead acid battery - Temperature compensation - Voltage: 12V/24V Auto Switch - Charge current: 30A - Load current: 30A - 25% current overload: 1 min. - Load disconnect: 11.1V or 22.2V (depending on 12V or 24V voltage) - Load reconnect: 12.6V or 25.20V (depending on 12V or 24V voltage) - Equalization voltage (10 mins): 14.6V or 29.2V (depending on 12V or 24V voltage) - Boost voltage (10 mins): 14.4V or 28.2V (depending on 12V or 24V voltage) - Float voltage: 13.6V or 27.2V (depending on 12V or 24V voltage) - Temperature compensation (mV/C): -30mV or -60mV (depending on 12V or 24V voltage) - Operating temperature: -35 ~ 55C - Maximum support 720Watt (24V) 360Watt (12V) - Dimension: 142mm (L) x 34mm (H) x 96mm (W) - Digital LED display shows the 16 lighting options (by switch with 5 seconds) - Number display, from 0 to 7, DC output. - Number display, from 0. to 7. 1Hz output. - Digital LED stop flash to confirm correct switch selection. - 10 minutes delay to make sure its real dark.
- 12/24V 30Amp solar charge controller
