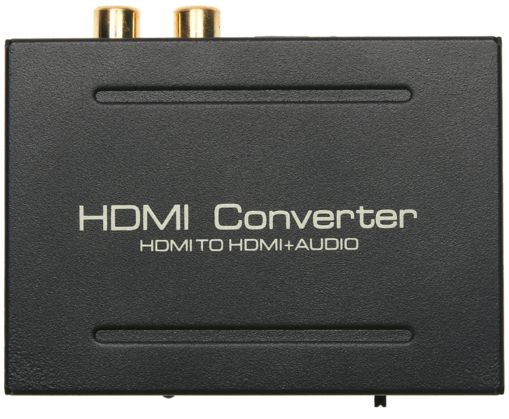

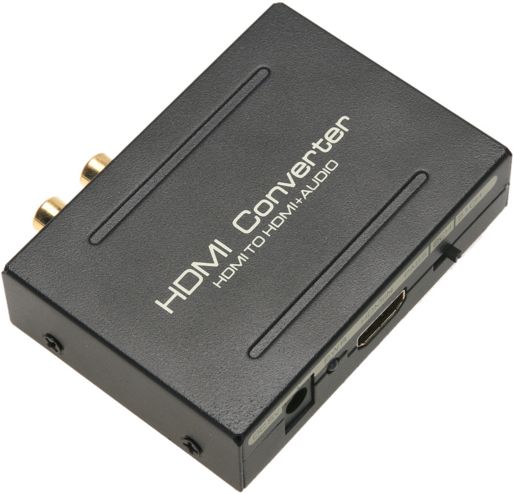

HDMI to HDMI Optical SPDIF + RCA L/R Converter Splitter 1080p Audio Splitter HDMI Converter Adapter

Features:

1. Easy to install.

2. High quality and compatibility in Product Category.

3. Supports Apple TV and various Blu-ray player.

4. One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output.

5. Output audio support : SPDIF+R/L analog Audio Output.

6. SPDIF output : support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond)

7. Input Resolution : up to 1080P(50/60Hz)/720P/480P.

8. LED indication.

Specification:

1. HDMI resolution : 1080P/1080i/720p/576p/576i/480p/480i

2. Support video color format : 24bit/deep color 30bit,36bit

3. Audio output : L/R+SPDIF

4. Max bandwidth 225MHz

5. Max baud rate 6.75Gbps

6. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)

7. Input/Output DDC signal 5Volts p-p (TTL)

8. Input cable distance. ≤15m AWG26 HDMI standard cable

9. Output cable distance ≤20m AWG26 HDMI standard cable

10. Max working current : 500mA

11. Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output : DC5V/1A

12. Operating Temperature range: -15 to +55℃

13. Operating Humidity range 5 to 90%RH (No Condensation)

14. Power supply : DC 5V/1A

15. Product size: approx. 85*68*20mm/3.34*2.67*0.78''

16. Net weight: approx. 144g

17. Gross weight: approx. 145g

Package includes :

1 x HDMI Converter

1 x DC 5V Power Adaptor

1 x User Manual
